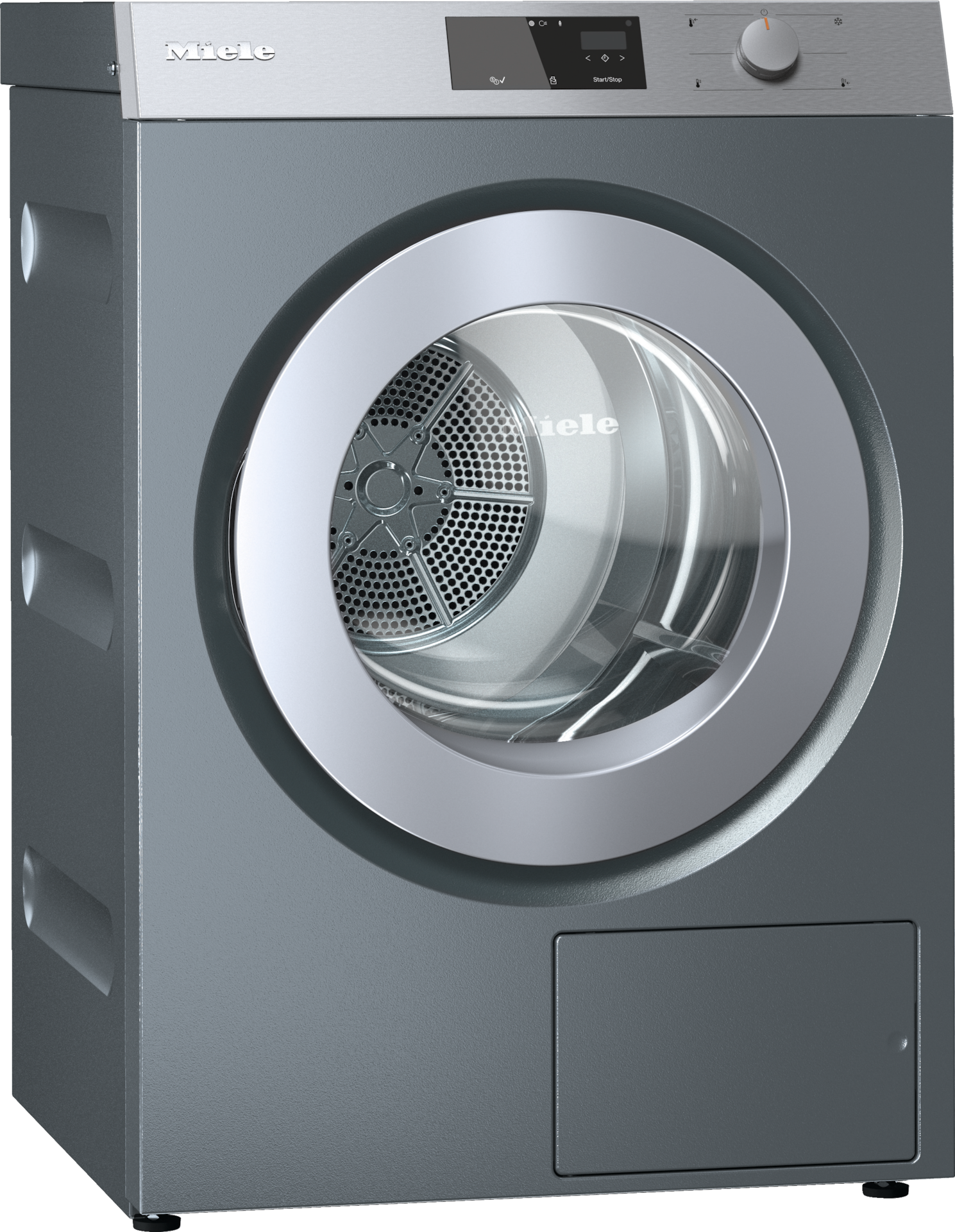

PDR 510 COP [EL]
Professional vented dryer, electric heating with M Select COP time control, specifically for self-service applications.
- Drum volume 180 l, load size8 kg–10 kg
- Unique, gentle fabric care – honeycomb drum
- Connected for the future using LAN and WiFi
- Tested for intensive use – unparalleled Miele quality
Voltage:
3N AC 400V 50/60HZ 16 A
Product benefits
Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Honeycomb drum Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Easy to understand symbols The control panel is characterised by logically arranged and easy to understand symbols. Practical large-surface filter Ergonomic convenience: The filter is easy to remove and captures the fluff from several drying cycles easily. M Select control system Fast, direct selection of the drying programme and effortless access to additional functions and settings. Connection of payment system Optimum use in self-service areas is possible thanks to the connection for payment systems. Connector Box The Connector Box facilitates connections to external systems, e.g. payment, dispensing and peak-load systems. LAN interface The LAN interface enables secure communication in the local network via a LAN cable. WLAN interface The WLAN interface enables wireless communication in the local network. Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Large capacity The large capacity drum ensures perfect drying results even with large loads. Honeycomb drum Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Perfect anti-crease action The laundry is tumbled regularly after the end of the programme to protect it from creasing. SoftLift drum ribs ensure gentle fabric care The SoftLift drum ribs allow laundry to be dried gently and evenly. Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. Axial airflow For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Excellent durability Professional technology ensures excellent reliability and durability for daily work routine. Easy to understand symbols The control panel is characterised by logically arranged and easy to understand symbols. Practical large-surface filter Ergonomic convenience: The filter is easy to remove and captures the fluff from several drying cycles easily. M Select control system Fast, direct selection of the drying programme and effortless access to additional functions and settings. Countdown indicator After the programme has started, the display shows the cycle time remaining. Drum lighting No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
Product benefits
- Highlights
- Connectivity
- Efficiency
- Gentle laundry care
- Performance
- Quality
- User convenience
Highlights
Connectivity
Efficiency
Gentle laundry care
Performance
Quality
User convenience


Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PDR 510 COP [EL]
EAN 4002516657163 / Article number 52510006GB / Material number 12258030
| Construction type | Front loader |
| Range | Performance |
| Front | Iron grey |
| Fascia color | Stainless steel |
| Load size with a load ratio of 1:22.5 | 8 |
| Load size with a load ratio of 1:18 | 10 |
| Drum volume in l | 180 |
| Drying system | Exhaust air |
| Door opening [Ø] in mmi | 440 |
| Door opening angle in degrees | 180 |
| Door hinge | left |
| Stainless steel honeycomb drum |
- Construction type
- Front loader
- Range
- Performance
- Front
- Iron grey
- Fascia color
- Stainless steel
- Load size with a load ratio of 1:22.5
- 8
- Load size with a load ratio of 1:18
- 10
- Drum volume in l
- 180
- Drying system
- Exhaust air
- Door opening [Ø] in mmi
- 440
- Door opening angle in degrees
- 180
- Door hinge
- left
- Stainless steel honeycomb drum
| Control system | M Select Benchmark |
| Programmability | Setting of defined parameters |
| User interface | time-controlled |
| Time left display | |
| Control panel with easy-to-understand symbols |
| Heating type | Electric |
| Electrical connection | 3N AC 400V 50/60HZ |
| Electric heater rating in kW | 7.94 |
| Total connected load in kW | 8.2 |
| Fuse rating in A | 16 |
- Heating type
- Electric
- Electrical connection
- 3N AC 400V 50/60HZ
- Electric heater rating in kW
- 7.94
- Total connected load in kW
- 8.2
- Fuse rating in A
- 16
| External dimensions, height in mm | 1020 |
| External dimensions, width in mm | 700 |
| External dimensions, depth in mm | 763 |
| External dimensions, gross height in mmi | 1215 |
| External dimensions, gross width in mmi | 760 |
| External dimensions, gross depth in mmi | 820 |
| Net weight in kg | 72 |
| Gross weight in kgi | 80 |
| Maximum floor load in Ni | 853 |
- External dimensions, height in mm
- 1020
- External dimensions, width in mm
- 700
- External dimensions, depth in mm
- 763
- External dimensions, gross height in mmi
- 1215
- External dimensions, gross width in mmi
- 760
- External dimensions, gross depth in mmi
- 820
- Net weight in kg
- 72
- Gross weight in kgi
- 80
- Maximum floor load in Ni
- 853
| Recycling rate in % | 90 |
- Recycling rate in %
- 90
| Payment system (optional) | |
| Optical interface for service access | |
| Peak-load negotiation / energy management (optional) | |
| WiFi | |
| Connector Box | |
| LAN module (optional) |
| VDE | |
| VDE-EMC | |
| Splash-proof safety rating IPX4 | |
| WEEE | |
| UKCA | |
| Complies with Machinery Directive 2006/42/EC |
- VDE
- VDE-EMC
- Splash-proof safety rating IPX4
- WEEE
- UKCA
- Complies with Machinery Directive 2006/42/EC
